Can-Am Front Differential Ring Gear Bolts

A common failure in Can-Am Front differentials… Ring Gear bolts. While it’s not common on older machines, in 2021, the new Visco 4-Lok Differential was introduced and even up to 2025, the ring gear bolts back out and end up snapping/breaking causing 4WD failure.

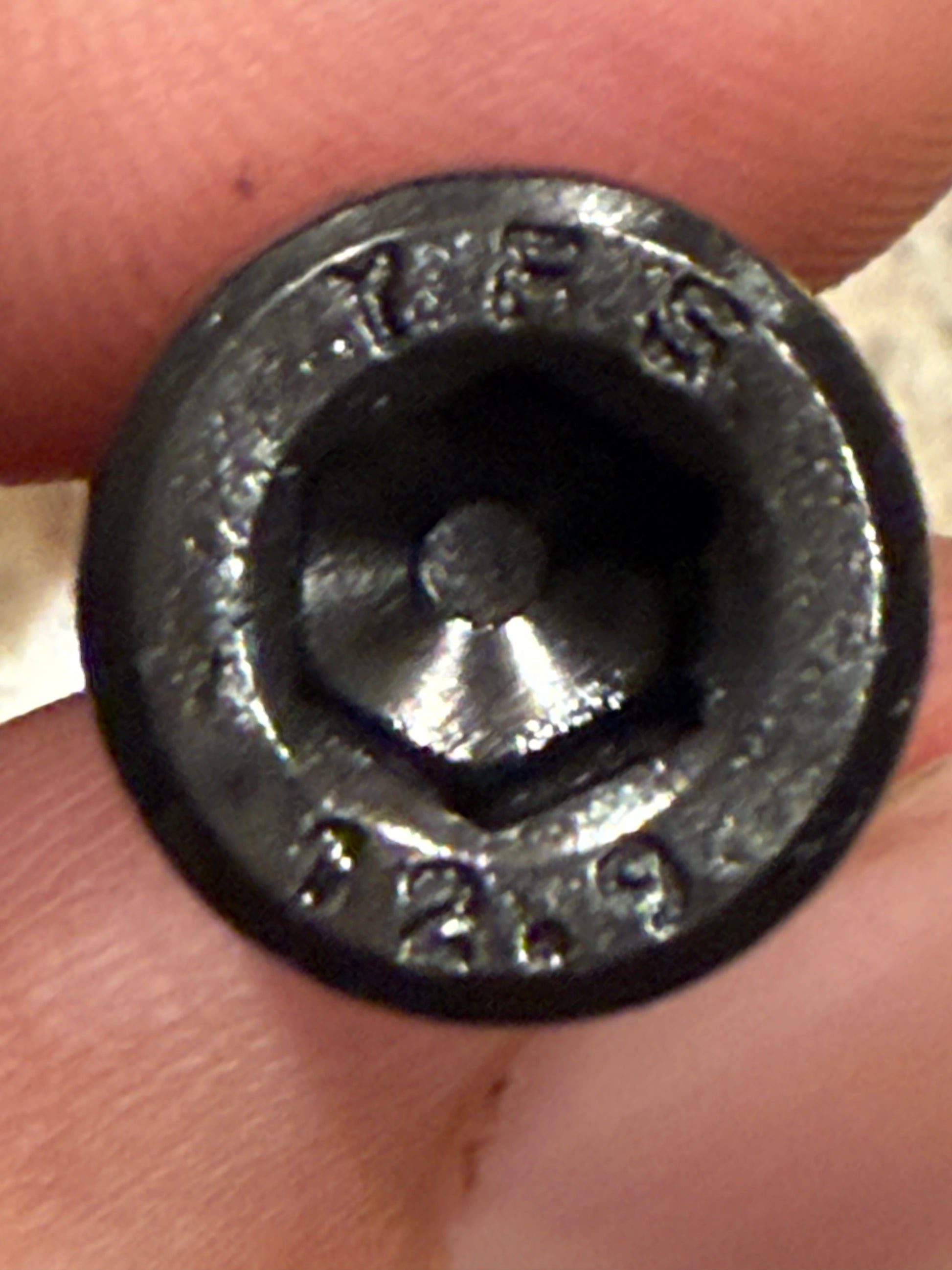

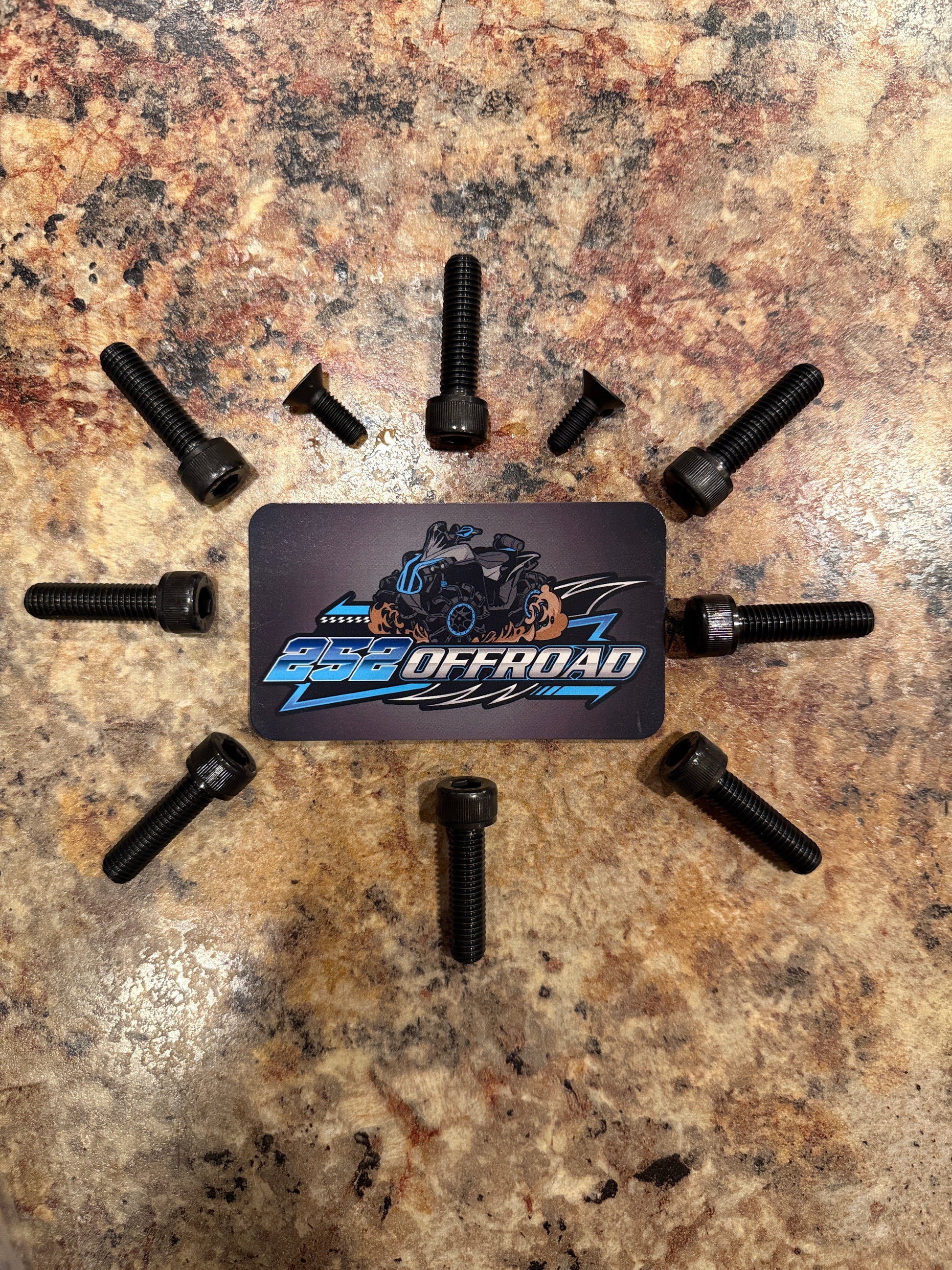

Our hardware kit includes 8 new ring gear bolts, and 2 counter-sunk housing screws. All are hardened bolts to ensure strength and longevity.

Torque the ring gear bolts to 37N•m (27 lbf•ft) with RED loctite.

Visco housing screws are to be snug with Red loctite also. DO NOT overly impact these screws.

RED LOCTITE is not supplied and will be needed for proper installation.
